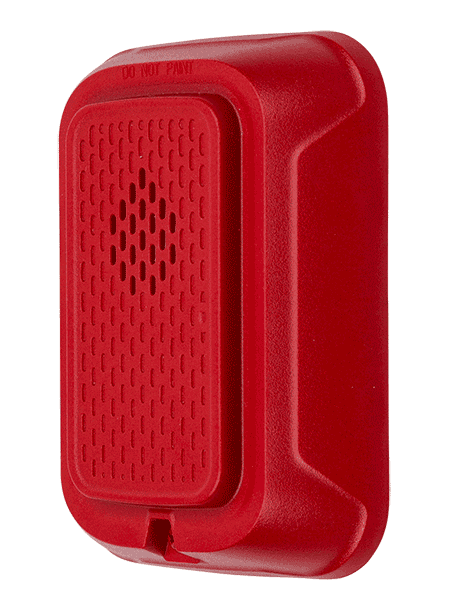

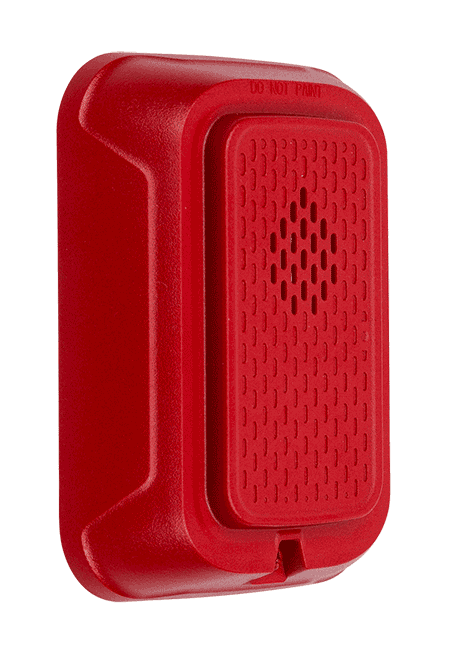

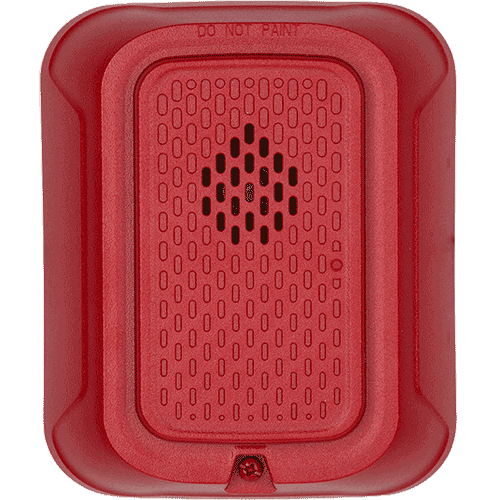

System Sensor HRL L-Series Standard Wall Horn, Red, Plain No Marking
L-Series, red, wall-mountable, 12/24 volt, horn.
System Sensor L-Series audible visible notification products are rich with features guaranteed to cut installation times and maximize profits with lower current draw and modern aesthetics
Specifications:
- Color: Red
- Dimensions: 5.6"L x 4.7"W x 1.25"D (142 mm L x 119 mm W x 32 mm D)
- FWR Max Op Current: (see Data Sheet for complete current draw information)
- Location: Indoor
- Maximum Humidity: 10 to 93% non-condensing
- Mounting: Wall
- Operating Temperature: 32°F to 120°F (-0°C to 49°C)
- Operating Voltage Range: 8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)
- Series: L-Series
- Voltage: Regulated 12DC/FWR or regulated 24DC/FWR
- Wiring Gauge: 12 to 18 AWG
The System Sensor L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and compact devices, and plain, FIRE, and FUEGO-printed devices, System Sensor L-Series can meet virtually any application requirement.
The L-Series line of wall-mount horns, strobes, and horn strobesinclude a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation, and a rotary switch for horn tones with two volume selections.
